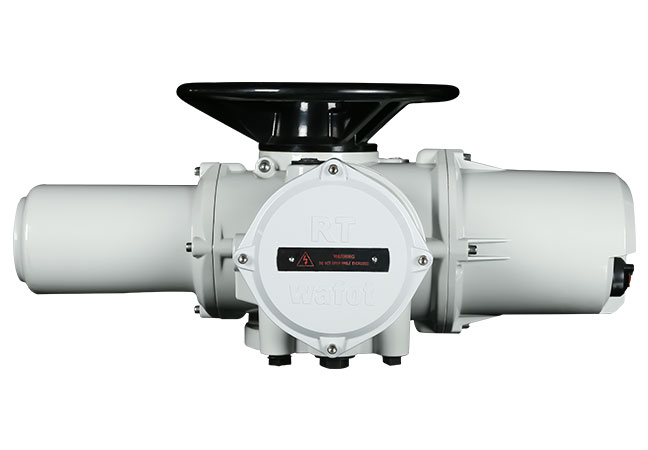

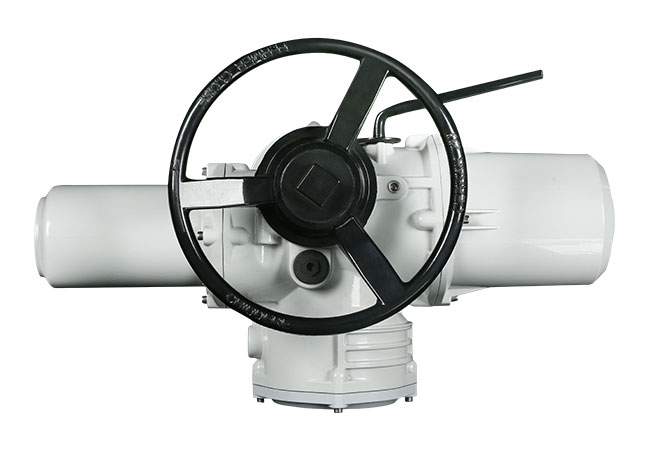

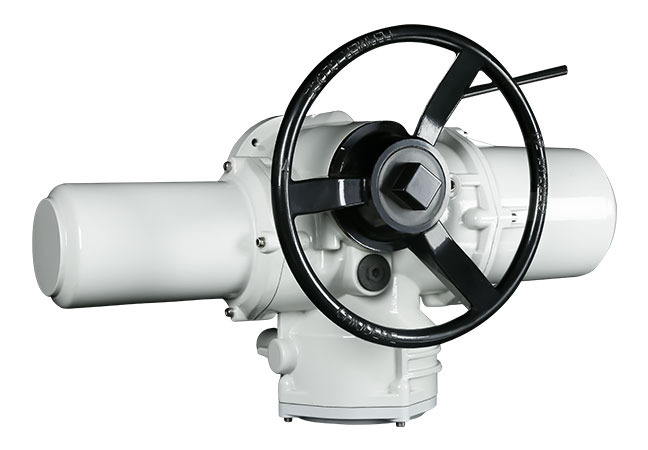

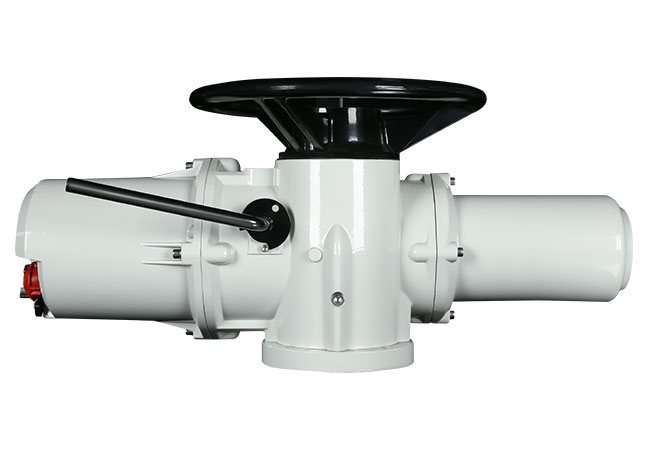

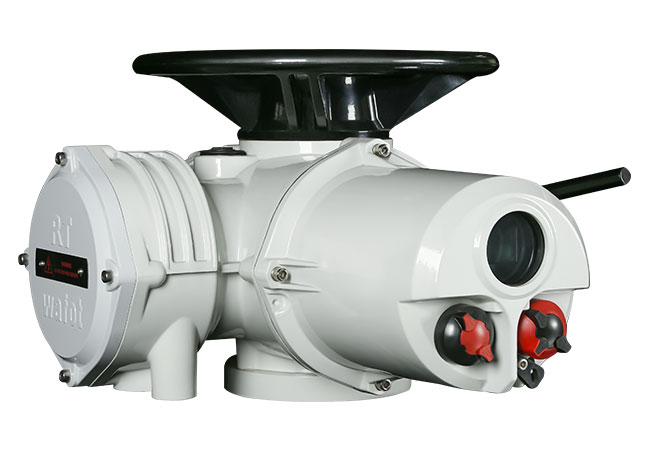

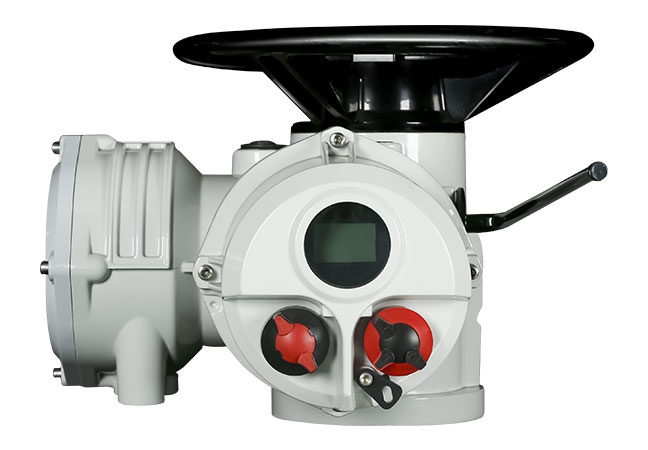

RTS series actuator is a multi-rotary electric actuator product, which can be used to control and adjust valves. Its switch-type product is suitable for applications with 60 starts/hour, and the adjustable product is suitable for applications with 1200 starts/hour.

　　RTS electric actuator has waterproof and explosion-proof specifications to choose from, and its torque output range is 35N.m-3000N.m. (Applicable to gate valves, globe valves and regulating valves, etc.).

　　1. Large-scale digital integrated chip is adopted, which has powerful functions and high precision.

　　2, electromechanical integration design, small size, light weight.

　　3. A professional pressure sensor is used to measure the torque value of the output shaft, so the accuracy of the measured torque value is improved, the error rate is less than or equal to 5%, and it can be dynamically monitored and displayed. Over-torque and locked rotor can give an alarm.

　　4. The displacement sensor adopts an absolute encoder, and the valve position will not be lost, which can ensure high accuracy, zero wear, long service life and strong anti-interference ability without battery support.

　　5. The function, parameter setting, debugging and on-site electric operation of the intelligent electric device are all set by the hand-held infrared remote controller, without opening the box cover.

　　6, full Chinese and character display, menu operation, intuitive and clear, easy to learn, understand and operate.
